SPLIT PHASE HYBRID – LVX 12KW WP

LVX 12KW WP is a brand new split phase hybrid (grid-interactive) inverter developed based on new construction procedure, specifically to target the rising power demand of users in the 120/240V split phase North American market.  Featuring max 12KW PV array support, this model can deliver up to 10KW of maximum continuous power and up to 15KW with grid-relay function enabled.   In addition to UL1741 and CSA certifications for North America, we are also pleased to announce LVX 12K WP is now CEC listed (California Energy Commission).  Benefits of being CEC listed allows customers to qualify for applicable Federal rebate / credit / loan.

Other notable features of this promising model include:

1. (OPTIONAL) AC coupling with existing GT systems
2. IP65 weatherproof enclosure (with IP65 design fans)

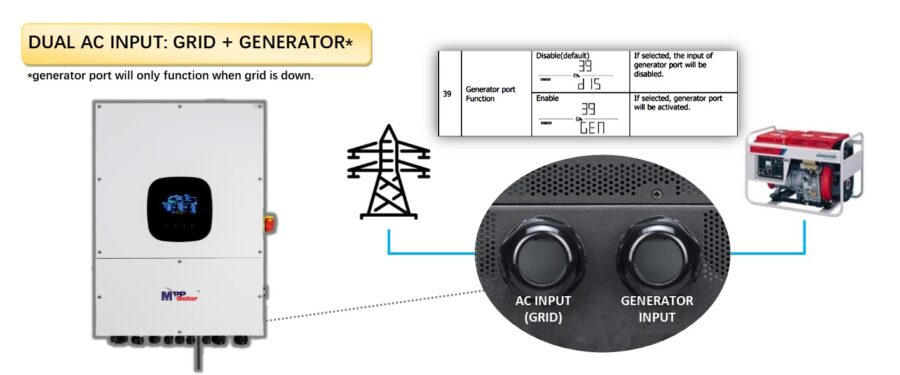

3. Dual AC input ports — utility + generator
4. Zero grid injection with CT (standard accessory)
5. Grid-relay feature boosts max output up to 15KW

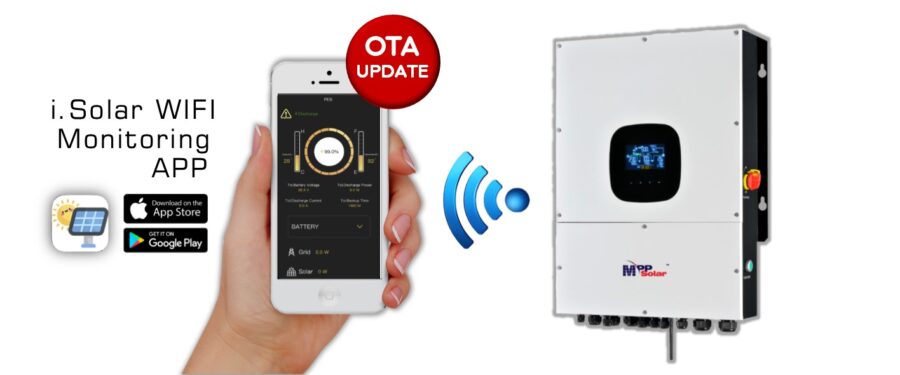

6. New monitoring app (i.Solar) with OTA firmware feature
7. 120/240V split phase output ready
8. Grid interactive (grid injection) capable
9. High PV input design (600V) with dual (2X) PV input
10. Built-in WIFI transmitter for monitoring on smartphones
11. BMS communication for Pylontech, Soltaro and Weco battery systems
12. Battery optional – use PV panels straight to load

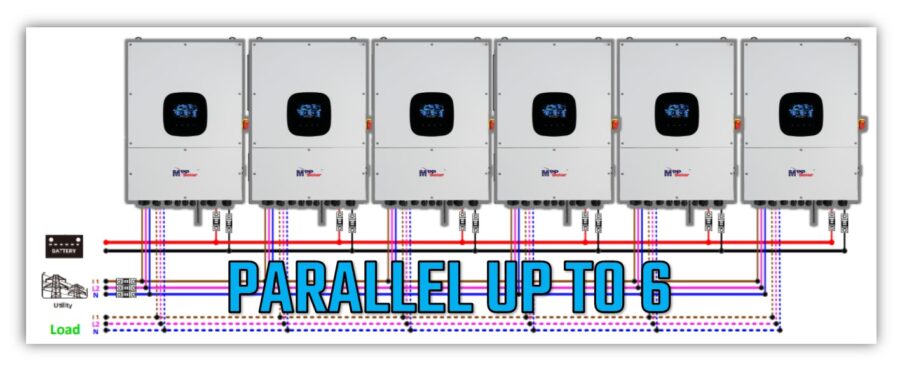

13. Parallel capable up to 6 units (60KW) with built-in parallel kits
14. Timer feature for AC output and charging
15. UL1741/CSA compliant

An important feature for a hybrid inverter is the ability to fulfill “zero grid injection“.   LVX 12KW WP is able to achieve this with the use of CT sensors (standard accessory) and once this feature is activated, the inverter will direct all incoming PV energy for self-consumption, as illustrated below.

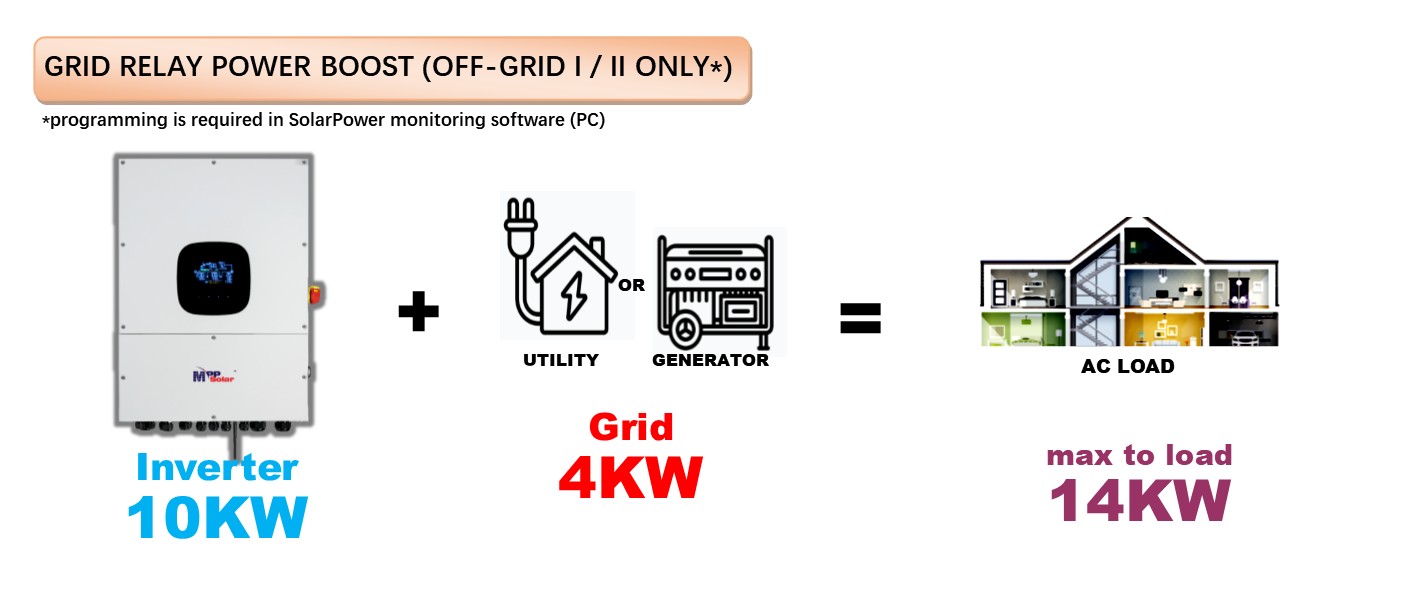

Similar to the MPI Hybrid series (MPI 10K, MPI 12K/15K WP)，this model also retains Grid Relay feature and will increase maximum power capacity from 10KW to 15KW (5KW power boost from grid) when this feature is enabled.   For more details on this please refer to catalog & user manual.

Unique to the LVX 12KW WP, the ability to AC couple with existing grid-tie inverter which allows users to transform existing home RE system with greater flexibility, battery backup, and better utility of PV array.  Note: this is an OPTIONAL feature and will require firmware update and setting and wiring change in order to fulfill application.  For more information, please refer to product catalog / AC coupling manual or contact our Sales Team directly.
