U-GK / U-MS SERIES


  • The U-GK / U-MS Series is the latest generation inverters with new and improved High Resolution 4.3” LCD with touch-screen capability that offers a sleek and minimalistic design.  Maintaining a long family tradition of MPP Solar all-in-one inverters, this series comes also packed with these useful features:

    • Mode Shifting RGB Color Ring Display

    This feature allows users to program unit to display different colors to reflect the various stages of operating modes.

    • Parallel capability up to 9 units, in 1-phase or 3-phase configuration

    this allows great flexibility and expansion possibility to users (parallel kits required), as shown below in 9-unit parallel examples in single phase and 3-phase respectively.

    • BMS Compatibility to select systems — Pylontech, Weco, and Soltaro

    A built-in BMS port is designed to link to compatible lithium battery brands such as Pylontech, Weco, Soltaro or other protocol-compatible lithium batteries.  A special BMS data cable is required (sold separately) to facilitate the communication.  Below is a concept map to U-GK / U-MS series with BMS connection to compatible lithium batteries.

    Using Generator as AC-Input

    • Generator rating is recommended to be 30-50% larger than the inverter rating to reduce chances of overload.
    • Inverter-generators are strongly recommended due to its cleaner output than conventional generators.  Unsuitable generator output will be rejected by the inverter in order to protect battery/load.

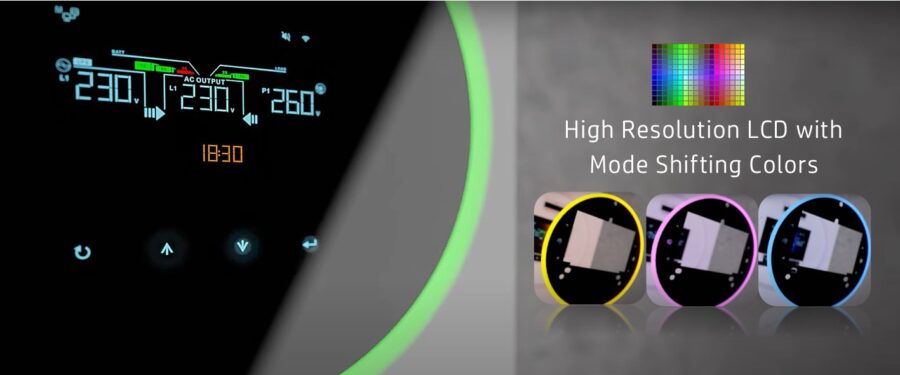

    • High resolution 4.3” LCD with RGB Mode-Shifting display
    • Built-in WIFI transmitter for monitoring on smartphones
    • High PV input design max up to 500V (Voc) (U-GK only, 450V for U-MS)
    • Maximum parallel capability up to 9 units (U-MS only)
    • BMS compatibility to Pylontech / Weco / Soltaro lithium batteries
    • Timer output and charging priority setting
    • Battery optional feature (standalone operation only)
    • 3.6KW/24V, 5.6KW/48V pure sine wave output
    • Max up to 120A system charging (solar + utility)
    • Increased charging voltage up to 64V (U-MS only)
    • Suitable for off-grid or with grid input
    • Generator starter dry contact
    • Extensive programmable menu
    • Easy to install
    • FREE monitoring software on PC / Mac / Linux

  • **For WatchPower software please contact our Sales team sales@mppsolar.com directly.
