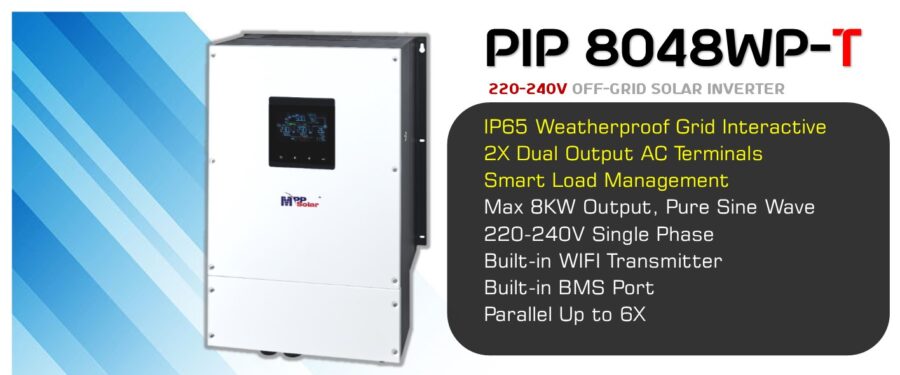

PIP-8048WP-T (IP65, 2X Output)
-
The 8048WP-T is a brand new model incorporating several key features from other series including WP IP65 protection enclosure and 2X dual AC output terminals, allowing smart load management. This model promises a 8KW pure sine wave maximum continuous output based on 220-240v single phase (European type output).

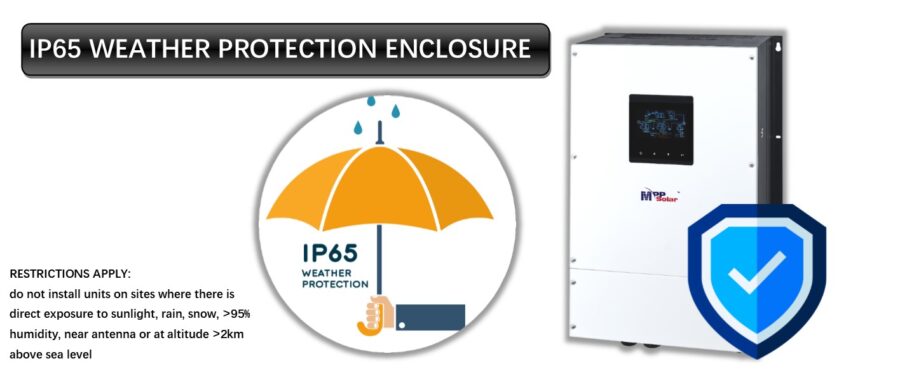

With IP65 protection feature, this model can be installed in outdoor environment without direct exposure to elements, and this design will also increase resistance to PCB corrosion and therefore enhance product life.
additional key features include:
- 2x dual PV input (up to 4KW PV array per input, 8KW total)

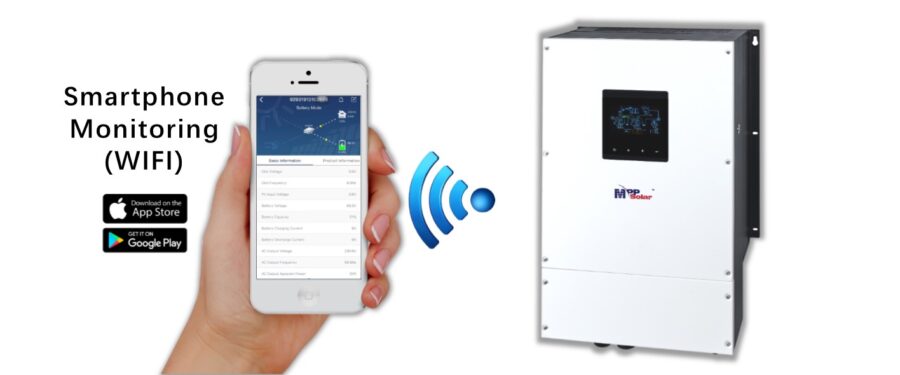

- Built-in WIFI transmitter (to monitor unit on iPhone/Android smartphone)

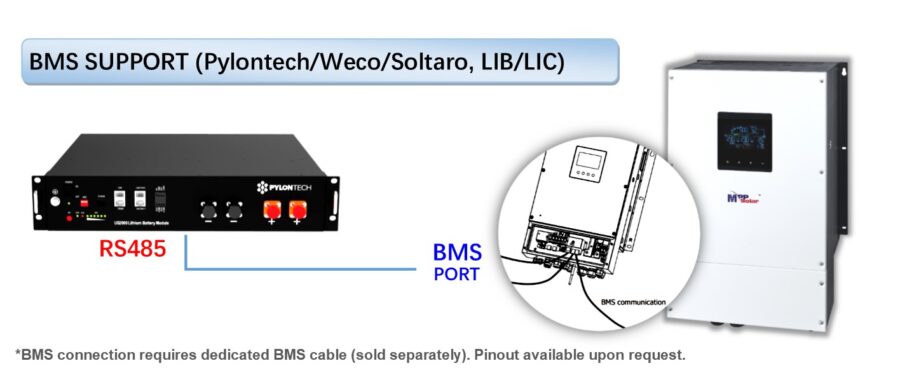

- BMS port (RS485 / CANbus support to Pylontech / Weco / Soltaro systems (and other compatible lithium batteries)

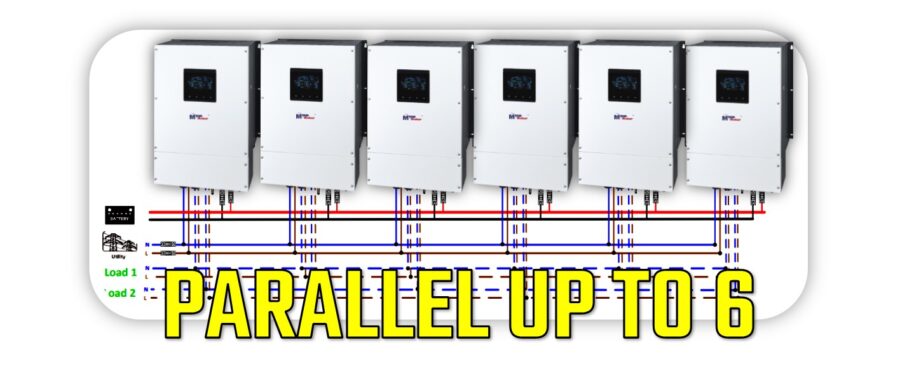

- Parallel up to 6 units max (48KW). Built-in parallel kit.
-
- IP65 weatherproof enclosure (with IP65 design fans)

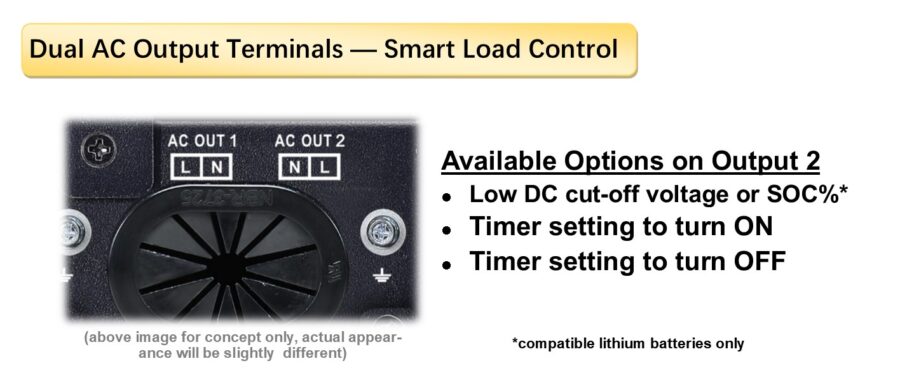

- 2 AC output load terminals for smart load control
- Built-in WIFI transitter (for monitoring on iPhone/Android)
- Built-in BMS communication (select lithium BMS only)
- Dual 2X PV input, max 8KW PV array
- High PV input 500V (Voc)
- Max system charging 150A
- Battery optional mode
- Equalization mode available
- 8KW pure sine wave output, 48V system voltage
- Max utility charging current 120A
- Max solar charging current 150A
- Max Bulk/Float setting 62V
- Suitable for off-grid or with grid input
- Extensive programmable menu

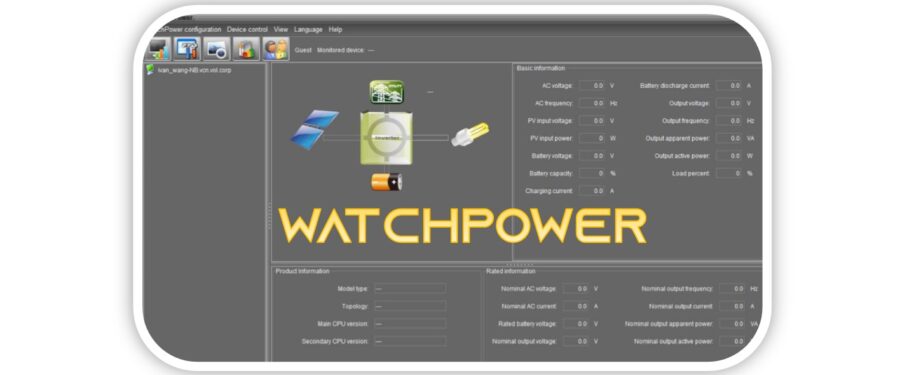

- FREE monitoring software on PC / Mac / Linux
- PIP-8048WP-T Catalog
- PIP-8048WP-T User Manual
- Generator Requirement
-
**For WatchPower software please contact our Sales team sales@mppsolar.com directly.
