PIP-MK Series

OVERVIEW
FEATURES
CATALOGS
MONITORING

This PIP-MK series is a brand new model with select combined features from PIP-GK (Android monitoring/USB/Bluetooth , built-in LCD remote display) and PIP-MS series (parallel support, built-in MPPT solar charger) with a unique feature —

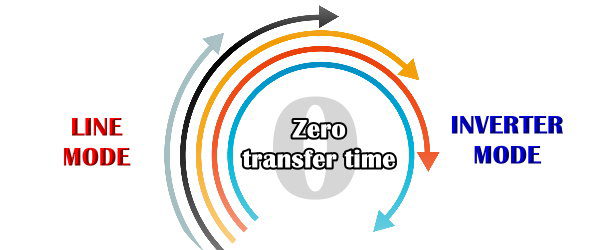

- Zero transfer time between line mode and inverter mode

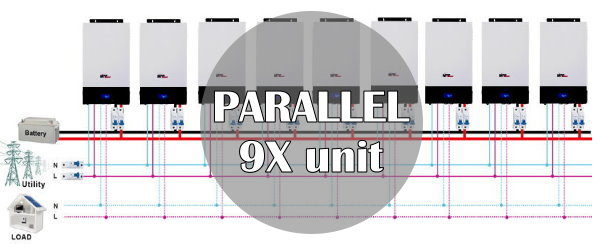

This feature is especially important for critical and sensitive load such as servers and ATM machines where security is a high concern and therefore these load do not tolerate any form of power interruption. In addition, the MK model’s parallel feature allows great flexibility and expansion possibility to users (parallel kits required), as shown below in 9-unit parallel examples in single phase and 3-phase respectively.

Starting 2019, 5048MK is now officially compatible with Pylontech battery’s BMS system through the dedicated BMS port. A special data cable will be required and sold separately to facilitate the communication. Note this BMS communication works only with Pylontech batteries. For more information, please see Pylontech BMS information page. (note: this feature does not exist on 3024MK)

For more information, please download catalogs from tab page above or contact our sales office at sales@mppsolar.com.
IMPORTANT: restrictions when using zero-transfer time models (online design)
1. While using generators as AC input on our zero transfer time models (1-3K LV-MK, 5048MK and 5048MKX) is possible, it is NOT recommended because there’s a strong possibility that the generator input cannot be “phase-locked” to establish a solid connection with the inverter. Zero transfer time inverters are designed based on online UPS topology and so it has a particularly high requirement to phase-lock with any AC input source. Generators output – even inverter-type generators – are known to have fluctuating frequency such that phase-lock may be very difficult, most likely not possible. While this typically won’t result in any damage, the generator input would become useless. For best performance, please refrain from using generators on these models and apply only utility grid.
2. ECO mode (grid bypass) is automatically disabled on parallel setup; only single unit operation will allow ECO mode / bypass. This is due to limitation of online design and cannot be changed.
- NEW! Zero transfer time
- NEW! Improved Monitoring Features – Removable USB, RS232/RS485, Bluetooth, Android

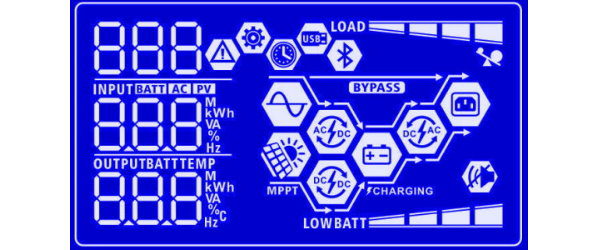

- NEW! Removable LCD Display Control Module
- NEW! Reserved BMS Port for Pylontech BMS system (5048MK only)
- 3KW/24V, 5KW/48V model available
- Max up to 80A MPPT solar charger and support up to 4kw PV array
- Max PV input up to 145V open circuit
- Increased charging voltage up to 64V
- High frequency pure sine wave design
- Suitable for Off-Grid or with Grid
- Generator starter dry contact
- Programmable parameters on LCD
- Max up to 60A utility charging
- Adjustable charging voltage
- Easy to install
- FREE monitoring software
- LCD Display + LED indicators
- PIP-MK Series Catalog PDF
- Generator Requirement
- WatchPower User Manual
**For WatchPower software please contact our Sales team sales@mppsolar.com directly.
