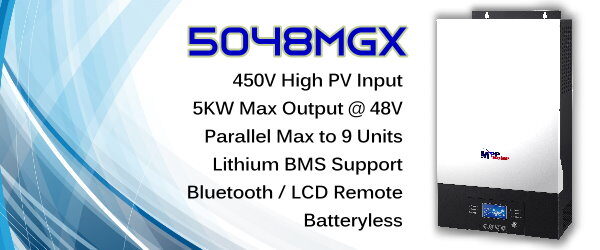

This new 5048MGX is a new member of the Off-Grid High PV input model family, with 4 new main features on top of the existing 5048MG model:
- Detachable LCD remote display
- Bluetooth wireless monitoring on Android
- Lithium battery BMS support (Pylontech, Weco, Soltaro, and Bak)*
Similar to the 5048MG, the MGX also offers maximum parallel number of units up to 9, so users can configure a parallel system either as single phase or 3-phase, as shown below.

Single Phase

3-Phase

Important note about Batteryless Operation
When configuring system in parallel using multiple units, please be sure that a battery MUST be used or otherwise it may cause system to work incorrectly, or possibly lead to damage. Due to the inconsistent nature of PV power, batteryless mode can only work normally under single-unit setup.

For more information, please download the catalogs at the tab page above or contact our sales office at sales@mppsolar.com.

*BMS cable required (optional accessory)
- High PV input up to 450V (Voc)
- Available in 5KW/48V only
- Parallel support up to 9 units (parallel kit required and sold separately)
- Batteryless operation (single unit mode only)
- Built-in genset starter dry contact
- Bluetooth monitoring capability (Android)
- Detachable LCD remote display
- Lithium battery BMS support (Pylontech, Weco, Soltaro, Bak)*
- High frequency pure sine wave output, light-weight design
- Built-in MPPT max 80A solar charger
- Built-in utility max 80A battery charger
- Programmable modes on LCD, e.g. AC priority vs. Solar(DC) priority
- Adjustable Bulk/Float charging voltage
- Indoor installation only
- Wide AC input range selectable allowed for bypass
- LCD + LED indicators
- FREE monitoring software
Using Generator as AC-Input
- Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
- Inverter-generator is recommended due to its cleaner output than conventional generators. Unsuitable generator output may be rejected by the inverter.
*BMS cable required (optional accessory)
- PIP-MGX Catalog PDF
- Generator Requirement
- WatchPower User Manual
**For WatchPower software please contact our Sales team sales@mppsolar.com directly.
