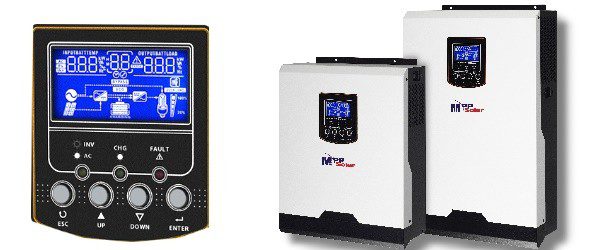

PIP-HSE/MSE Series


  • The PIP-HSE/MSE/HSE1/MSE1 series consists of special cost-effective models that are introduced to target price-sensitive markets by omitting certain features (parallel-ready, genset starter, and remote LCD display support), but at the same time some attributes have been upgraded including higher DC support and equalization chargingWhile HSE1/MSE1 still retain the PF0.8 design, it offers additional price-saving advantage over the PF1.0 HSE/MSE models

    Available models in this series include:

    • 2424HSE1 (2.4KW/24V, 50A PWM) — special value model
    • 2424MSE1 (2.4KW/24V, 40A MPPT) — special value model
    • 1012HSE (1KW/12V, 50A PWM)
    • 1012MSE (1KW/12V, 40A MPPT)
    • 2024HSE (2KW/24V, 50A PWM)
    • 2024MSE (2KW/24V, 40A MPPT)
    • 3024HSE (3KW/24V, 50A PWM)
    • 3024MSE (3KW/24V, 40A MPPT)
    • 3024MSXE (3KW/24V, 60A MPPT)
    • 5048HSE (5KW/48V, 50A PWM)
    • 5048MSE (5KW/48V, 60A MPPT)

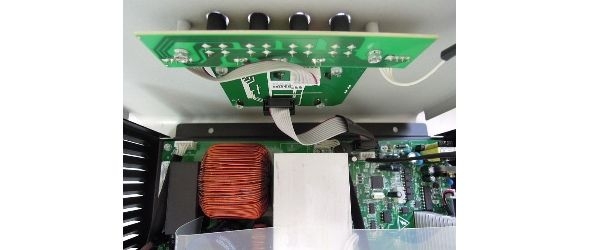

    Despite this series has eliminated some features in comparison to others, they do offers several other marked improvement in terms of better PCB integration, fuse protection against DC reverse polarity, built-in equalization charge (up to 61V for 48V systems respectively), and higher DC input limit (up to 63V on 48V models), in addition to low cost advantage.

    By integrating and simplifying product features, this series is aimed to target price sensitive markets.  For more information, please download catalogs from tab page above or contact our sales office at sales@mppsolar.com.

    • NEW! HSE1 & MSE1 best value models are added to catalog (2.4kw, 24vdc only)
    • 1KW – 5KW available
    • Special revised models for OEM / price sensitive consumers
    • 2 main types: HSE (with PWM solar charger) and MSE/MSXE (with MPPT solar charger)
    • Built-in Equalization Charge with timer setting
    • Higher bulk/float charge: up to 15V, 31.5V and 61V for 12V, 24V & 48V systems respectively
    • Maximum DC up to 16V(12V), 33V (24V) and 63V (48V)
    • Lighter, more compact design
    • Fuse protection against DC reverse polarity
    • Programmable modes on LCD, e.g. AC priority vs. Solar(DC) priority
    • Adjustable Bulk/Float charging voltage
    • Support major lead acid batteries
    • Indoor installation only
    • 3-stage battery charger (max 60A on 48v models only)
    • Wide AC input ranges
    • LCD + LED indicators
    • FREE monitoring software
    Using Generator as AC-Input

    • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
    • Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.

  • **For WatchPower software please contact our Sales team sales@mppsolar.com directly.
