MPI 30KW WP (IP65)


  • This MPI 30KW WP is the latest (and also the largest) IP65 solar hybrid inverter in MPP Solar product line, to date, with these marked features

    1. High PV input design (1000V) with TRIPLE 3X PV input
    2. Wide DC input design 500V-900V for HV battery banks
    3. Parallel-ready capable up to 4 units (120KW)
    4. 3rd-Generation SiC high efficiency MOSFET with improved durability
    5. IP65 weatherproof enclosure (with IP65 design fans)

    Maximum power output now is up to 30KW continuously.  With 3 PV MPPT input (trackers), users have access to 2 (+) and 2 (-) terminals so 6 PV input terminal sets available.  Similar to the MPI 10K, 3 primary modes are also available on the 30KW:

    For more information, please download the user manual and catalog from tab page above or contact our sales office at sales@mppsolar.com.

    • High PV input design (1000V) with TRIPLE 3X PV input
    • Wide DC input design 500V-900V for HV battery banks

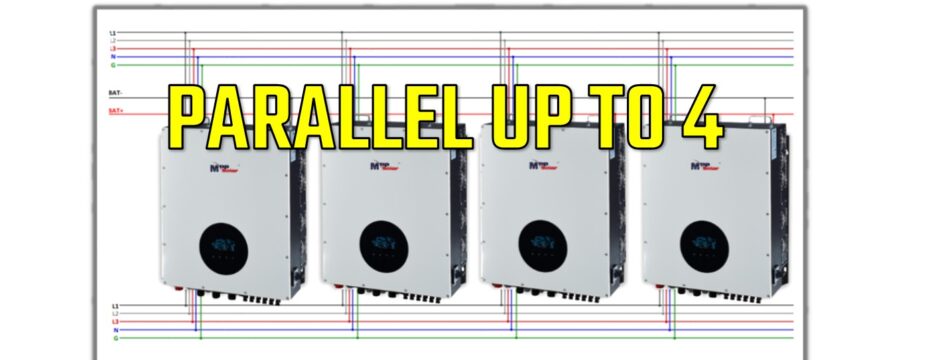

    • Parallel-ready capable up to 4 units (120KW)
    • 3rd-Generation SiC high efficiency MOSFET with improved durability
    • IP65 weatherproof enclosure (with IP65 design fans)
    • Grid interactive (grid injection) capable
    • 3 Modes: Grid-Tie with Battery Backup, Grid-Tie only, Off-Grid
    • Pure sine wave output 30KW maximum continuous
    • 3-phase 400VAC output (phase to phase) / 230VAC (phase to neutral)

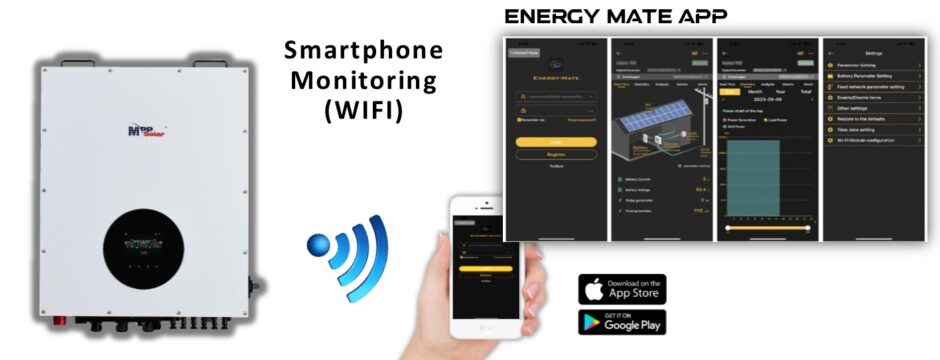

    • Built-in WIFI transmitter to support monitoring on smartphones
    • BMS communication for REPT HV battery systems & MPP Solar LIB protocol
    • Timer AC output ON/OFF timer
    • Large LCD touchscreen
    • VDE compliant
    • Compatible with Modbus Card / Modbus Server / Energy Meter accessories
    • 50Hz & 60Hz support
    • Programmable parameters
    • Genset starter dry contact
    • Overload and short circuit protection
    • FREE monitoring software
    • RS232/USB/BMS/WIFI/Dry Contact/Intelligent Slot communication interface

    IP65 WP Installation Guidance

    • do NOT install units on sites where there is direct exposure to sunlight, rain, snow, >95% humidity, near antenna or at altitude >2km above sea level

    Using Generator as AC-Input

    • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
    • Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.
    • When using generator as AC input – grid injection must be DISABLED.

    IMPORTANT

    1. accessories such as Energy Meter, Modbus Card, and Modbus Server are all optional and may be purchased separately to establish energy meter application.
    2. Energy meter does not support parallel operation (load sharing) so when connecting multiple inverters to the energy meter, parallel function needs to be disabled.

  • These optional accessories may be sourced separately to fulfill “zero grid injection”.   Note – when using energy meter, the inverter must be programmed in Grid-Tie with Backup II mode and this also works only in single-unit operation, not parallel.
