SPLIT PHASE LVX6048WP (IP65)


FW UPDATE LVX6048WP

1. (FINAL) 1.43 DSP / 14.18 MCU  for units produced ON and AFTER Feb. 2022 (“xxxx2202xxxxxx” on S/N label)
2. 7.31 DSP / 14.10 MCU for unit produced BEFORE Feb. 2022 (e.g. “..2201..”)
please follow this 2-step instruction to update:  1. download all files / folders from link to desktop on your PC,  2. refer to PDF SOP and update both folders (DSP + MCU).  Once updated, please check CPU version on LCD display again and verify version is correct.

  • Arguably the most comprehensive inverter in the MPP Solar Split Phase inverter family, LVX6048WP is only the only model in the entire MPP Solar solar inverter to date that offers these 12 important features:

    1. IP65 weatherproof enclosure (with IP65 design fans)
    2. AC coupling – converts existing on-grid systems to hybrid
    3. Grid-relay feature boosts max output up to 9KW

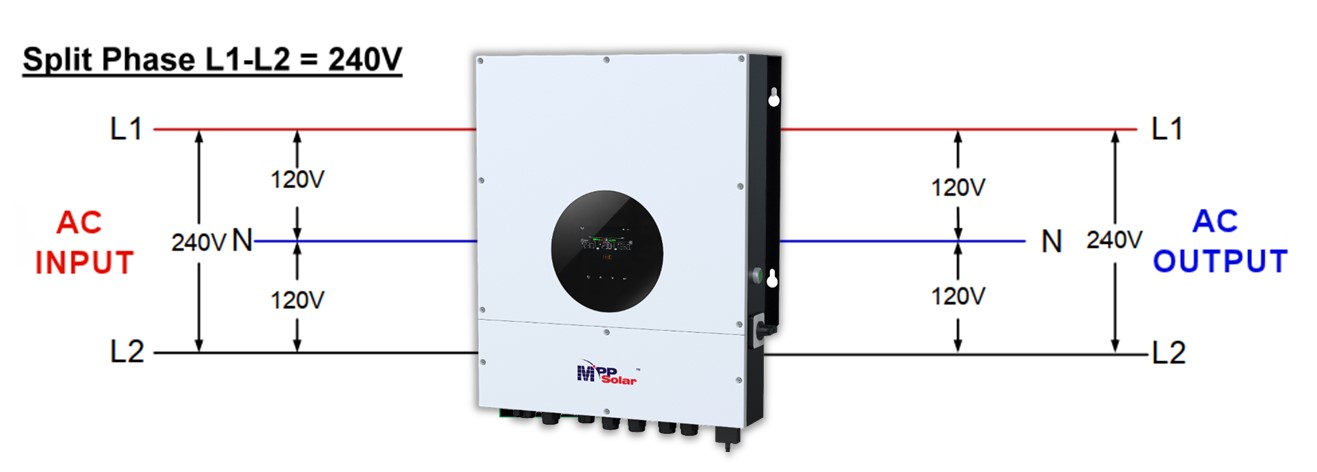

    4. 120/240V split phase output ready
    5. Grid interactive (grid injection) capable
    6. High PV input design (600V) with dual (2X) PV input
    7. Dual AC input ports — utility + generator
    8. Built-in WIFI transmitter to support monitoring on smartphones
    9. BMS communication for Pylontech, Soltaro and Weco battery systems
    10. Battery optional – use PV panels straight to load

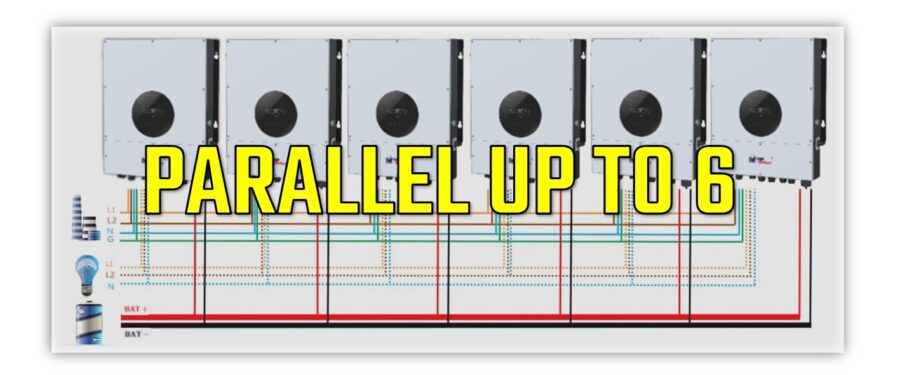

    11. Parallel capable up to 6 units (36KW) with built-in parallel kits
    12. Timer feature for AC output and charging
    13. UL1741 compliant

    One important advantage of using the LVX6048WP is that one can easily convert a On-Grid system into a true Hybrid (grid-interactive with battery backup) easily by simply adding LVX6048WP into the existing system and “couple” its output with the on-grid inverter by programming a menu setting.

    For more information, please download the user manual and catalog at the tab page above or contact our sales office at sales@mppsolar.com.

  • IP65 WP Installation Guidance

    • WARNING: please do NOT install units on sites where there is direct exposure to sunlight, rain, snow, >95% humidity, near antenna or at altitude >2km above sea level

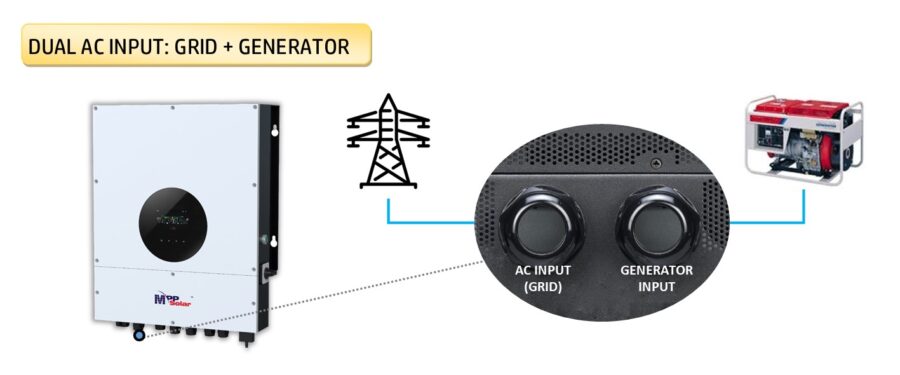

    Using Generator as AC-Input

    • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload and inverter-generator type is recommended for its cleaner output than conventional generators.  Unsuitable generator output will be rejected by the inverter.  See guide.
    • When using generator as AC input – grid injection must be DISABLED.
    • To use GEN INPUT on the LVX6048WP, updating to V1.37 is required and this update is applicable only to models produced after 2022 January.  Parallel operation with compatible genset is now also supported on V1.37.

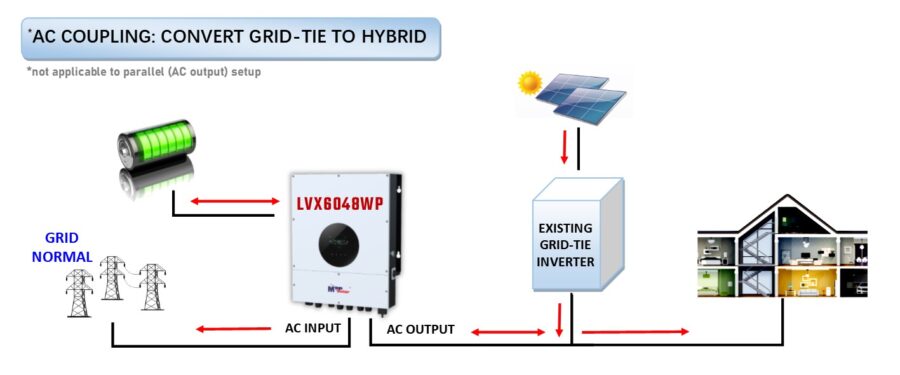

    AC Coupling

    • When running in AC Coupling mode with a GT inverter, be sure the GT inverter rating is lower than the LVX6048WP (<6KW) to avoid triggering self-protection.  This feature is only applicable to single unit operation, not parallel output.

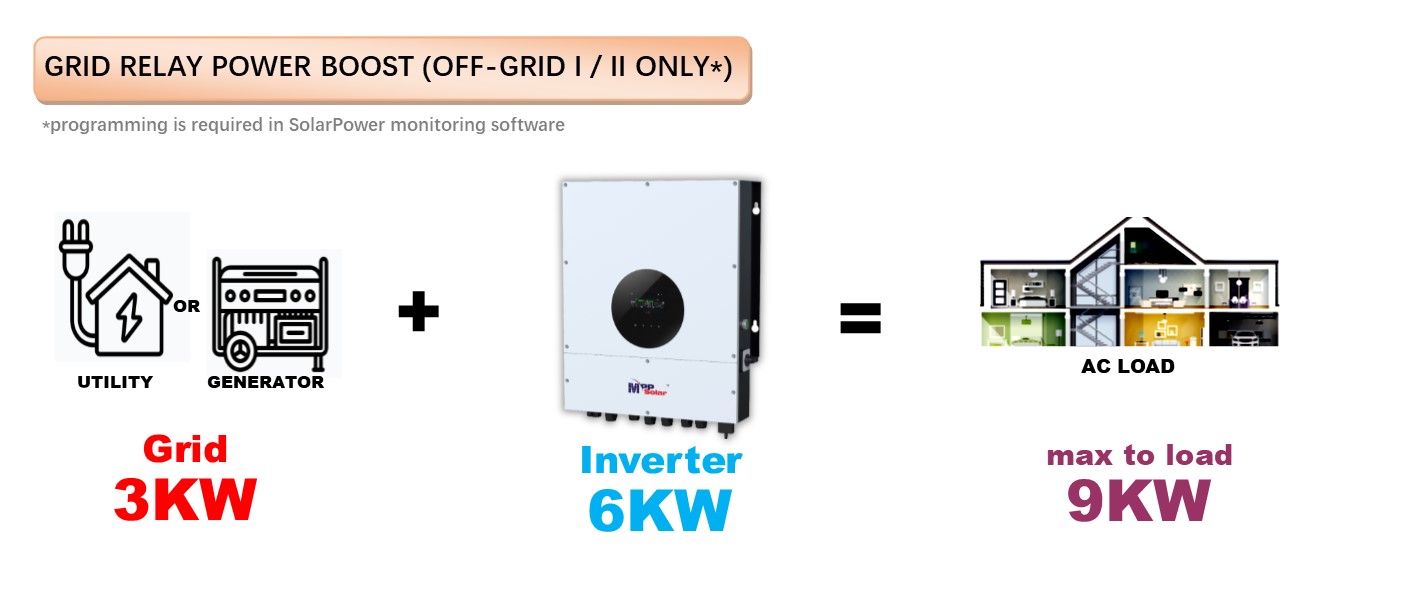

    Grid Relay

    • Additional power boost may be achieved at AC output by activating “grid-relay” feature on the inverter, available only in Off-Grid modes I and II via setting in SolarPower.  Grid injection will be disabled when off-grid modes are selected.

    .

    • IP65 weatherproof enclosure (with IP65 design fans)
    • AC coupling – converts existing on-grid systems to hybrid
    • Grid-relay feature boosts max output up to 9KW
    • Pure sine wave output 6KW max
    • 120/240V split phase output ready
    • Grid interactive (grid injection) capable
    • High PV input design (600V) with dual (2X) PV input
    • Dual AC input ports — utility + generator
    • Built-in WIFI transmitter to support monitoring on smartphones
    • BMS RS485 + CANbus communication support for BMS (with pre-defined support for Pylontech, Soltaro and Weco BMS)
    • Battery optional – use PV panels straight to load
    • Parallel capable up to 6 units (36KW) with built-in parallel kits
    • Timer feature for AC output and charging
    • Large LCD touchscreen
    • UL1741 compliant
    • 50Hz & 60Hz support
    • Programmable parameters
    • Built-in MPPT solar charger 120A
    • Adjustable bulk & float charging voltage
    • Genset starter dry contact
    • Overload and short circuit protection
    • FREE monitoring software
    • RS232/USB/BMS/WIFI communication interface

  • **For SolarPower software please contact our Sales team sales@mppsolar.com directly.
