This LVX6048 is the latest member to MPP Solar’s 120V/240V Split Phase inverter family. Adding several important features from our 220-240V European line, this inverter becomes the only low voltage model that offer these 7 valuable features
1. High PV input up to 450V, allowing more serial PV connection
2. Built-in WIFI transmitter to support monitoring on smartphones
3. BMS communication for Pylontech, Soltaro and Weco battery systems
4. Grid interactive (grid injection) may be enabled wherever it is allowed
5. Battery optional – use PV panels straight to load

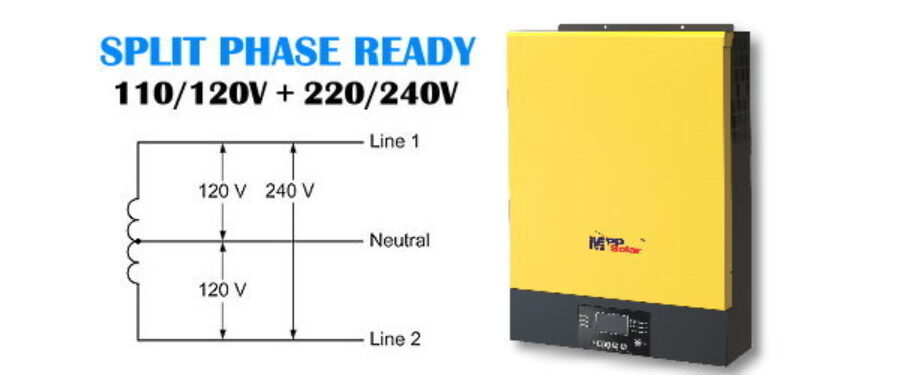

6. 120V/240V split phase output without needing to parallel

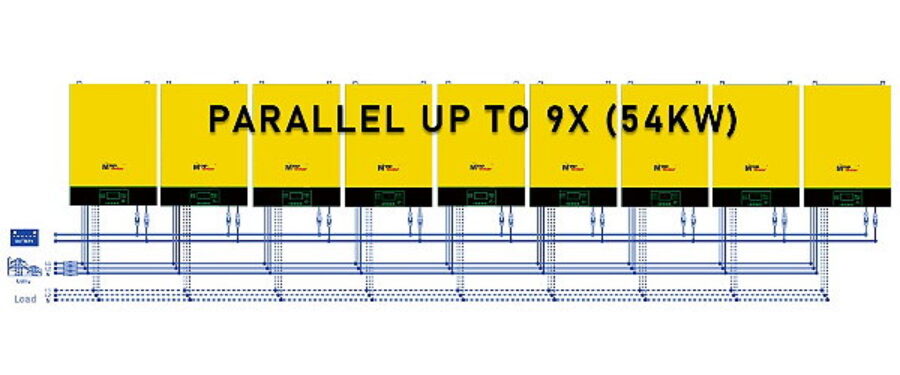

7. Parallel capable up to 9 units (54KW max)
Reinforced with built-in MPPT solar charger and maximum charging current up to 120A, this LVX6048 offer excellent value and flexibility and are ideal for off-grid or even grid interactive applications. Before enabling grid-injection, please be sure to obtain approval from local authorities.

For more information, please download the catalogs at the tab page above or contact our sales office at sales@mppsolar.com.
.
- Split Phase output possible (120V/240V), suitable for North America
- High PV input up to 450V (Voc)
- BMS support for Pylontech, Soltaro and Weco battery systems
- Built-in WIFI transmitter for monitoring on iPhones and Androids
- Battery optional
- Grid Injection may be enabled to feed excess PV power to grid (note: be sure to check with local authority for approval before application)
- Stackable — parallel up to 9 units (54KW)
- Pure sine wave output
- 50Hz & 60Hz support
- Programmable parameters
- Built-in MPPT solar charger 120A
- Max combined system charging (solar+utility) up to 120A
- Adjustable bulk & float charging voltage
- Support either grid or generator input
- Genset starter dry contact
- Overload and short circuit protection
- FREE monitoring software
- LCD Display + LED indicators
- RS232/USB communication interface
Using Generator as AC-Input
- Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
- Inverter-generator is recommended due to its cleaner output than conventional generators. Unsuitable generator output may be rejected by the inverter.
- When using generator as AC input – grid injection must be DISABLED.
- Split Phase Hybrid LVX6048 Catalog PDF
- Generator Requirement
- SolarPower Manual
**For SolarPower software please contact our Sales team sales@mppsolar.com directly.

SPLIT PHASE LVX SERIES – LVX6048
