HV 6048WP (IP65)


  • HV 6048WP is built similar to the HV/V2 series but with a robust upgrade to IP65 enclosure.  This improves the hybrid inverter’s durability to function flawlessly in weather challenging conditions.   As a hybrid inverter, it is defined by its ability to grid-inject power to city grids when there is excess PV energy, and similar to the HV/V2 series, HV 6048WP also do not any specific national grid certifications except CE so users may need to check with local authority before use.

    Notable features include:

    • IP65 weatherproof enclosure (with IP65 design fans)
    • Max PV input up to 550V
    • Max PV array support up to 6.5KW

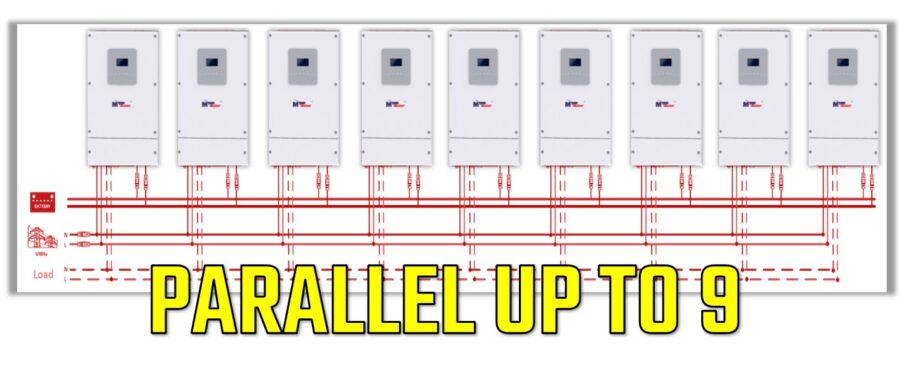

    • Parallel operation up to 9 units
    • Batteryless Support
    • Timer functions for AC output and AC charging

    For more information, please download the user manual and catalog at the tab page above or contact our sales office at sales@mppsolar.com.

  • .

    • IP65 weatherproof enclosure (with IP65 design fans)
    • Pure sine wave output 6KW max
    • 220-240V single phase output
    • Grid interactive (grid injection) capable
    • High PV input design (550V)
    • Max PV array support up to 6.5KW
    • Battery optional – use PV panels straight to load

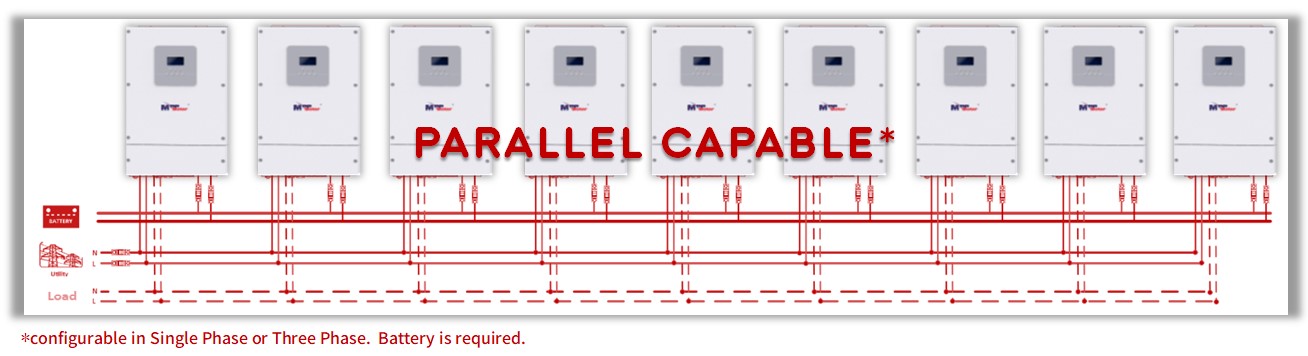

    • Parallel capable up to 9 units (54KW) with built-in parallel kits

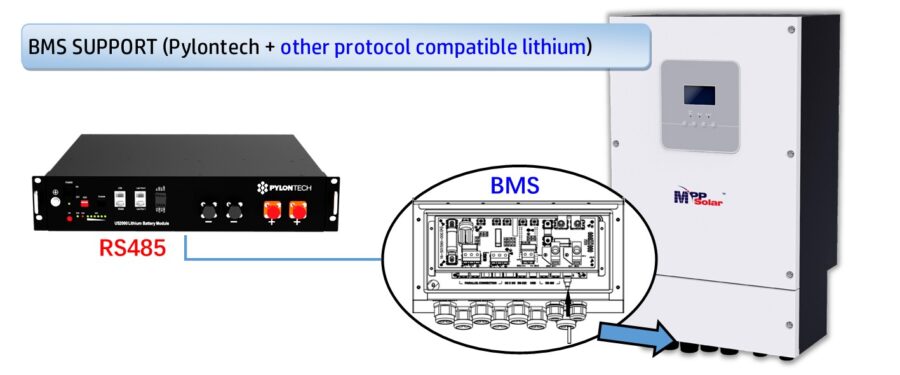

    • BMS support for select models of Pylontech and MPP Solar protocol compliant lithium batteries
    • Timer feature for AC output and charging
    • Large LCD touchscreen
    • CE certified
    • 50Hz & 60Hz compatible
    • Programmable parameters
    • Built-in MPPT solar charger 120A
    • Adjustable bulk & float charging voltage
    • Genset starter dry contact
    • FREE monitoring software
    • RS485/RS232/USB/BMS communication interface

    IP65 WP Installation Guidance

    • do NOT install units on sites where there is direct exposure to sunlight, rain, snow, >95% humidity, near antenna or at altitude >2km above sea level

    Using Generator as AC-Input

    • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.
    • Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.
    • When using generator as AC input – grid injection must be DISABLED.
